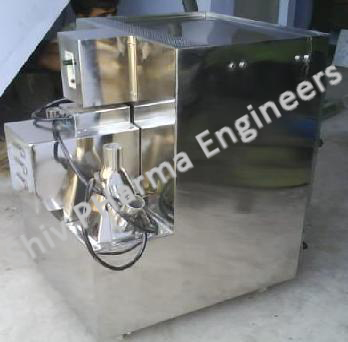

Dust Extractor

APPLICATION

dust-extractor

Dust Extractor is used with Tablet Press to control the flying dust generated During High Speed Compression of tablets. Dust Extractor is used to minimize lighter dust problem during tabletting process on tabletting Machine. Flying dust is generated during the tablet compression process and also free flowing of granules from hopper to the feed frame by gravity. This flying dust is sucked by the nozzle.

TECHNICAL SPECIFICATION

Model – SPE

DES150

DEB300

DEL400

Capacity

150 CFM

300 CFM

400 CFM

Suction Capacity-Cu.Feet/Min.

150

300

400

Filteration Area – Square Meter

0.8

1.34

1.9

Dust Storage Capacity – Liters

20

40

50

Electricals Specs.

1  HP

1.5 HP

1.5/2.0 HP

2800RPM/440V/50CS/3PH

Inlet Manifolds

f 38.1 – 04 Nos.
f 62 – 01 Nos.

f 38.1  – 06 Nos.
f 59  – 01 Nos.
f 100  – 01 Nos.

Cabinet (Except Housing for Drawer)

SS 304

Manifold

SS 316

Dust Bag

Polypropylene (60 Mesh Size)

Drawer

SS 316

Housing For Drawer

SS 316

Cover at Drawer

SS 316
