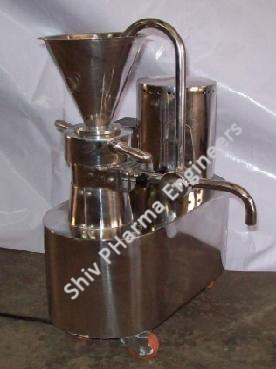

Colloid Mill Machine

APPLICATION

colloid_millcolloid_mill1

Colloid Mill Machine is suitable for Homogenizing, Emulsifying, Dispersing, Mixing , Comminuting of liquids to highly viscous products. It is based on rotor and stator principle. It’s available in plain as well as water jacketed model which is suitable for heat sensitive product. In your case as required the machine will be of water jacketed type.

TECHNICAL SPECIFICATION

MODEL

LAB/R&D

Production – 3 HP

Production – 5 HP

Max. Out Put* / Hour
Indicative

30 to 60 Kgs.

1200 Kgs.

1500 Kgs.

Reduced Particle Size*

8-10 Microns

5-10 Microns

5-10 Microns

Hooper Capacity

5 Liters

15 Liters

20 Liters

Electricals

2800 RPM , 3 Ph-4Wire, 440 V

Motor

0.25 to 1.0 HP

3 HP

5 HP
